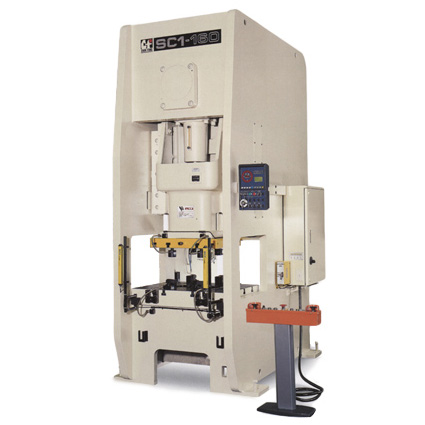

Chin Fong Straight Side Single Crank Press

For further information regarding this press please call us on 01384 392266 or contact us through our enquiry form.

Please rotate your device to view the table data

blank
SC1-80
TYPE
SHL
CapacityTons80
R.T.Pmm53.25
Stroke lengthmm10060160
Strokes per minuteF60
V55-
110
75-
150
40-
75
Die Heightmm300 330
Maximum Upper Die Weightkg400
Slide Adjustmentmm80
Bolster Area (L.R. x F.B.)mm750
x460
 750
x600
Slide Plate Area (L.R. x F.B.)mm560×460
Scrap Opening (LRxH)mm480×280
Main Motor (kWxp)F5.5×4
V 7.5×4
Slide Adjusting MotorkWxp0.4×4
Die Cushion
CapacityTons 6.3
Pad Area (L.RxF.B)mm410×260
Strokemm70
Machine Dimension
Widthmm1230
Depthmm17301800
Heightmm28202880
SC1-110
TYPE
SHL
CapacityTons110
R.T.Pmm53.25
Stroke lengthmm11070180
Strokes per minuteF50
V50-
100
65-
135
30-
65
Die Heightmm320 350
Maximum Upper Die Weightkg450
Slide Adjustmentmm90
Bolster Area (L.R. x F.B.)mm900
x520
 900
x700
Slide Plate Area (L.R. x F.B.)mm650×520
Scrap Opening (LRxH)mm540×280
Main Motor (kWxp)F7.5×4
V10×4
Slide Adjusting MotorkWxp0.4×4
Die Cushion
CapacityTons 8
Pad Area (L.RxF.B)mm500×300
Strokemm80
Machine Dimension
Widthmm1365
Depthmm19502040
Heightmm29803045
SC1-160
TYPE

SHLXL
Capacity
Tons160
Rated Tonnage (Above B.D.C)
mm
646
Stroke Length
mm
13080200250
Strokes Per Minute SPM
Fixed
Var
45
40-

85

55-

115

25-

50

20-

45

Die Height (S.D.A.U)
mm
350450
Max Upper Die Weight
Kg700
Slide Adjustment
mm100
Bolster Area

(L.Rx F.B)

mm
1000

x580

1000

x750

Slide Area (L.RxF.B)
mm700×580
Scrap Opening (LRxH)
mm580×280
Main Motor (kWxp)
Fixed
Var
15×4
11×4
Slide Adjusting Motor
kWxp0.5×4
Die Cushion
Capacity
ton10
Pad Area (L.RxF.B)
mm540×350
Stroke
mm80
Machine Dimension
Width
mm1500
Depth
mm22052290
Height
mm341035653710
SC1-200
TYPE

SHLXL
Capacity
Tons200
Rated Tonnage (Above B.D.C)
mm
646
Stroke Length
mm
15095200250
Strokes Per Minute SPM
Fixed
Var
35
35-
70
45-
95
20-
45
20-
40
Die Height (S.D.A.U)
mm
410450
Max Upper Die Weight
Kg800
Slide Adjustment
mm110
Bolster Area
(L.Rx F.B)
mm
1150
x650
1150
x850
Slide Area (L.RxF.B)
mm850×650
Scrap Opening (LRxH)
mm700×280
Main Motor (kWxp)
Fixed
Var
20×4
15×4
Slide Adjusting Motor
kWxp0.75×4
Die Cushion
Capacity
ton14
Pad Area (L.RxF.B)
mm640×470
Stroke
mm100
Machine Dimension
Width
mm1760
Depth
mm24902590
Height
mm380038654010
SC1-260
TYPE

SHLXL
Capacity
Tons260
Rated Tonnage (Above B.D.C)
mm
6.546.5
Stroke Length
mm
180100250300
Strokes Per Minute SPM
Fixed
Var
30
30-
60
40-
75
20-
40
20-
35
Die Height (S.D.A.U)
mm
460500540
Max Upper Die Weight
Kg800
Slide Adjustment
mm120
Bolster Area
(L.Rx F.B)
mm
1300
x700
1300
x900
Slide Area (L.RxF.B)
mm920×700
Scrap Opening (LRxH)
mm710×280
Main Motor (kWxp)
Fixed
Var
25×4
19×4
Slide Adjusting Motor
kWxp1.5×4
Die Cushion
Capacity
ton14
Pad Area (L.RxF.B)
mm700×470
Stroke
mm100
Machine Dimension
Width
mm1910
Depth
mm26552755
Height
mm424043254490
SC1-300
TYPE

XL
Capacity
Tons300
Rated Tonnage (Above B.D.C)
mm
7
Stroke Length
mm
300
Strokes Per Minute SPM
Fixed
Var
30
20-
35
Die Height (S.D.A.U)
mm
550
Max Upper Die Weight
Kg900
Slide Adjustment
mm120
Bolster Area
(L.Rx F.B)
mm
1600
x1000
Slide Area (L.RxF.B)
mm1400
x900
Scrap Opening (LRxH)
mm1000
x410
Main Motor (kWxp)
Fixed
Var
30×4
22.5×4
Slide Adjusting Motor
kWxp2.2×4
Die Cushion
Capacity
ton14
Pad Area (L.RxF.B)
mm700×470
Stroke
mm100
Machine Dimension
Width
mm2260
Depth
mm2945
Height
mm4525
